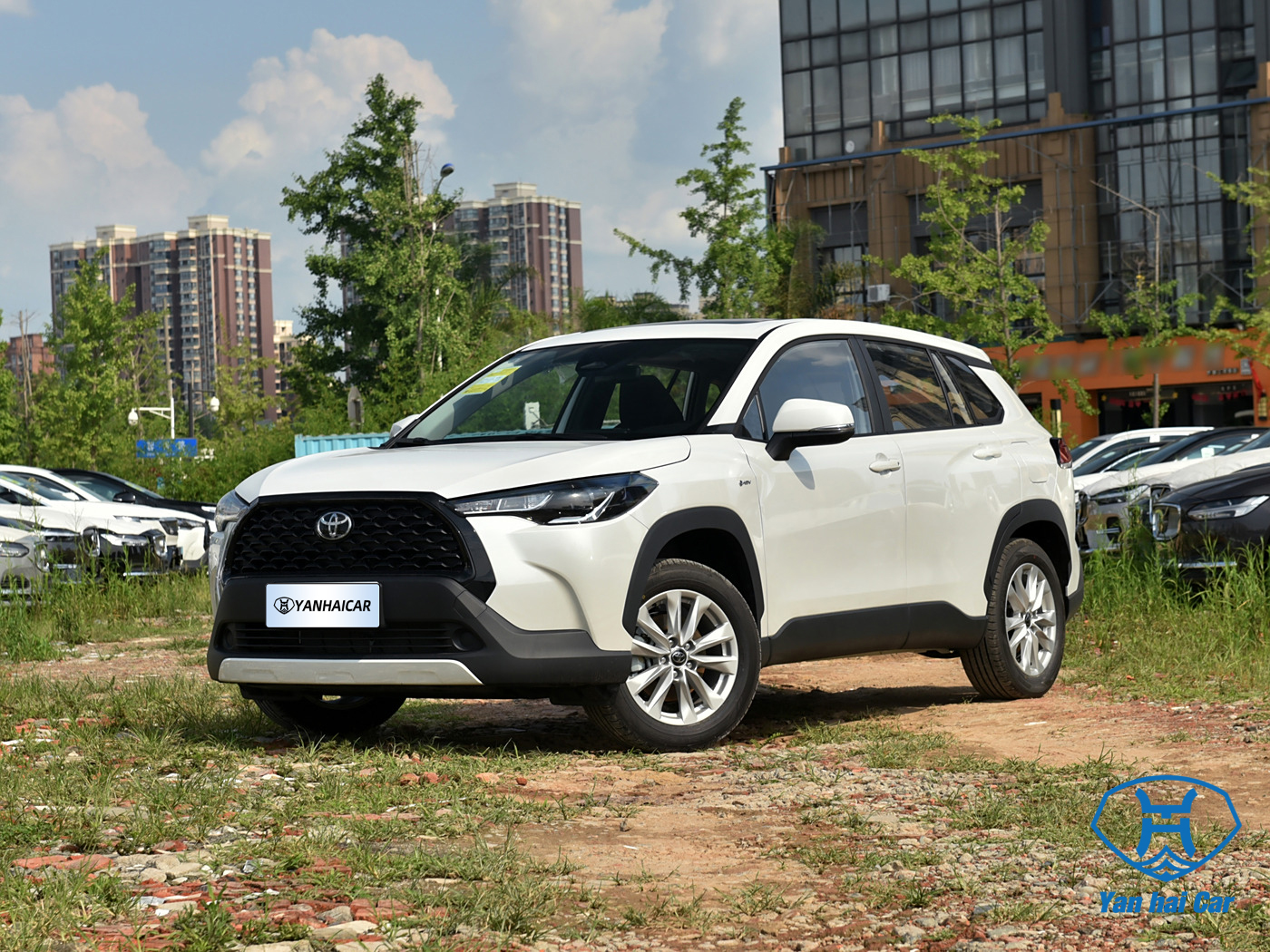

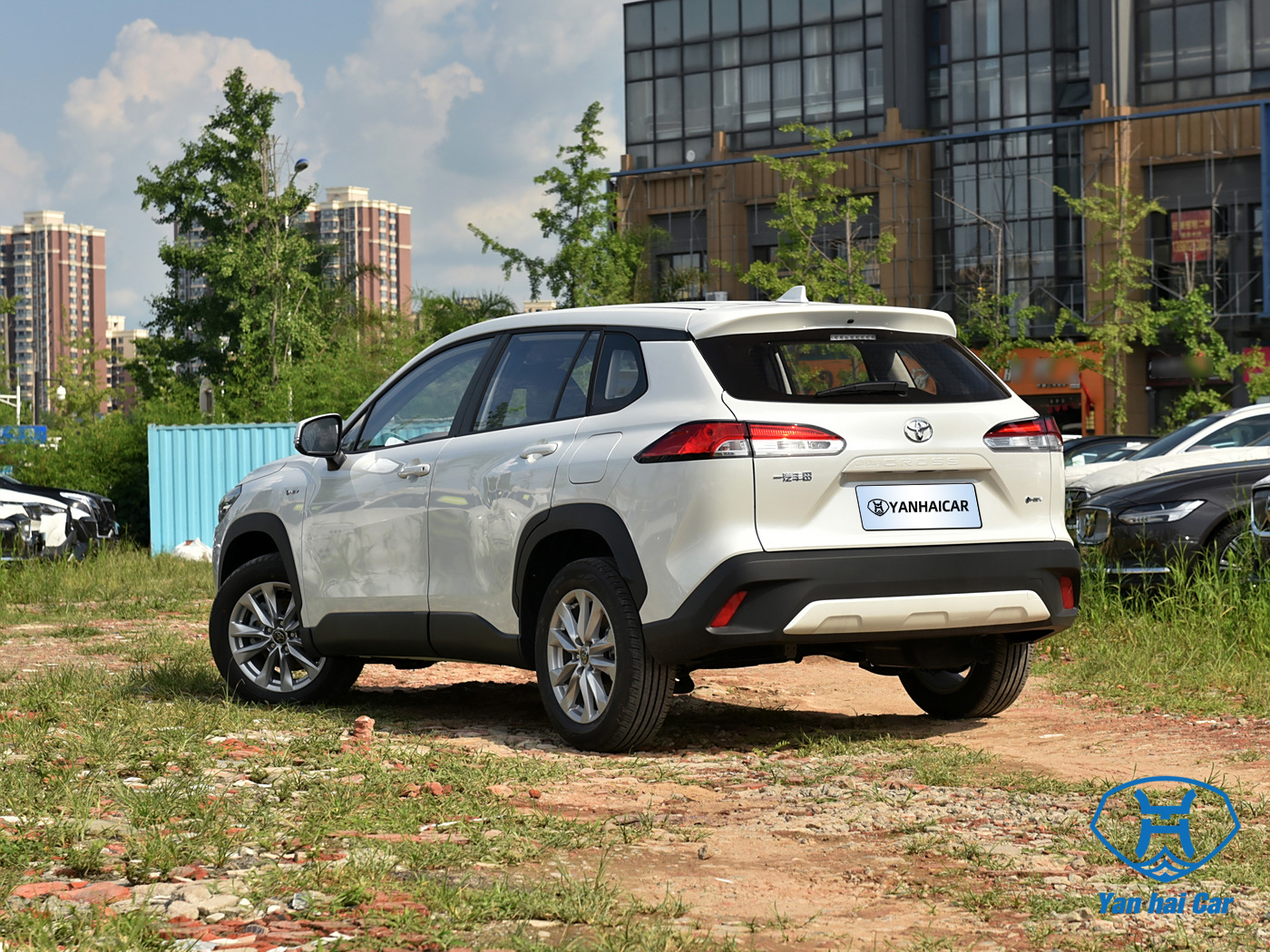

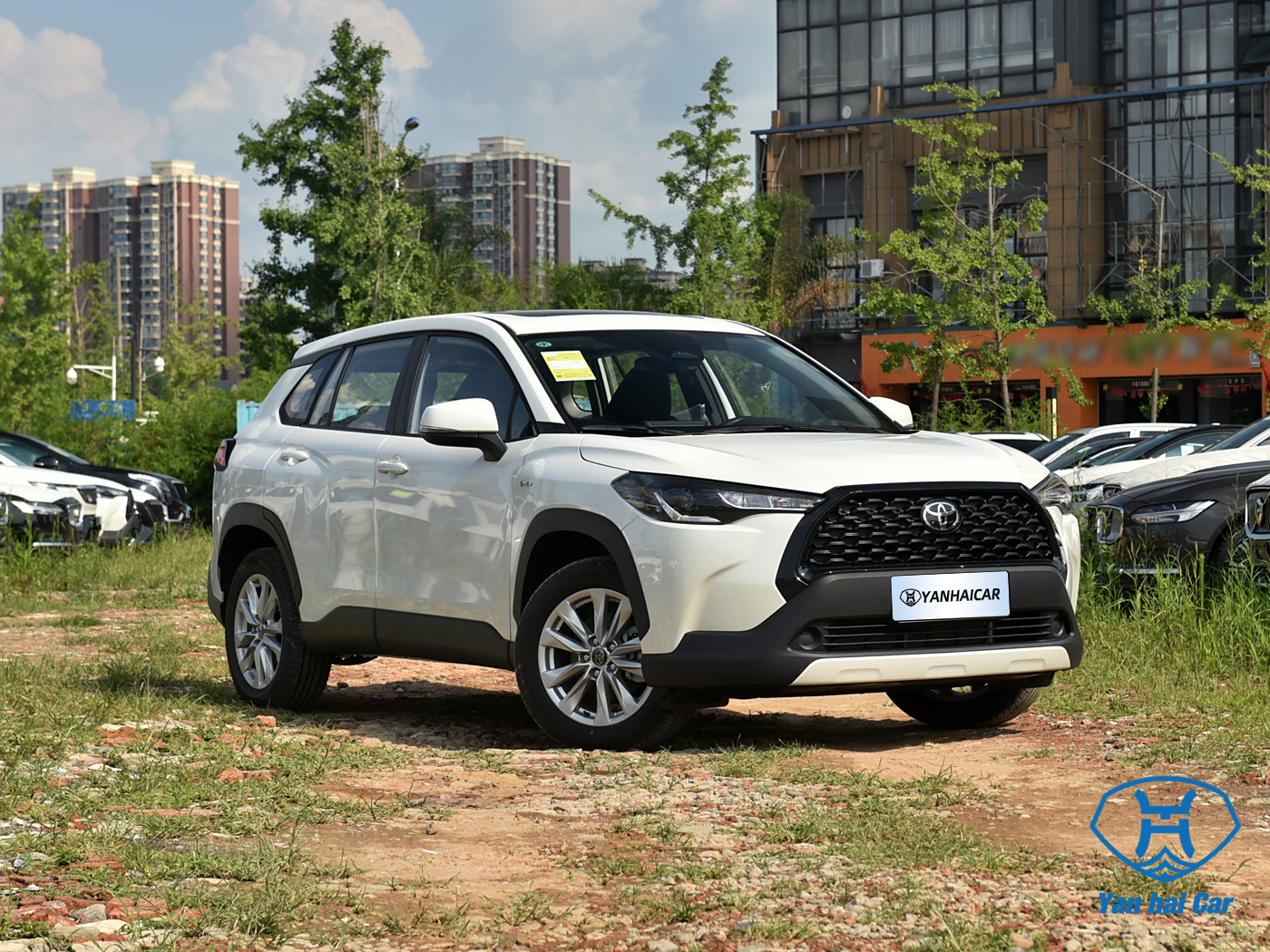

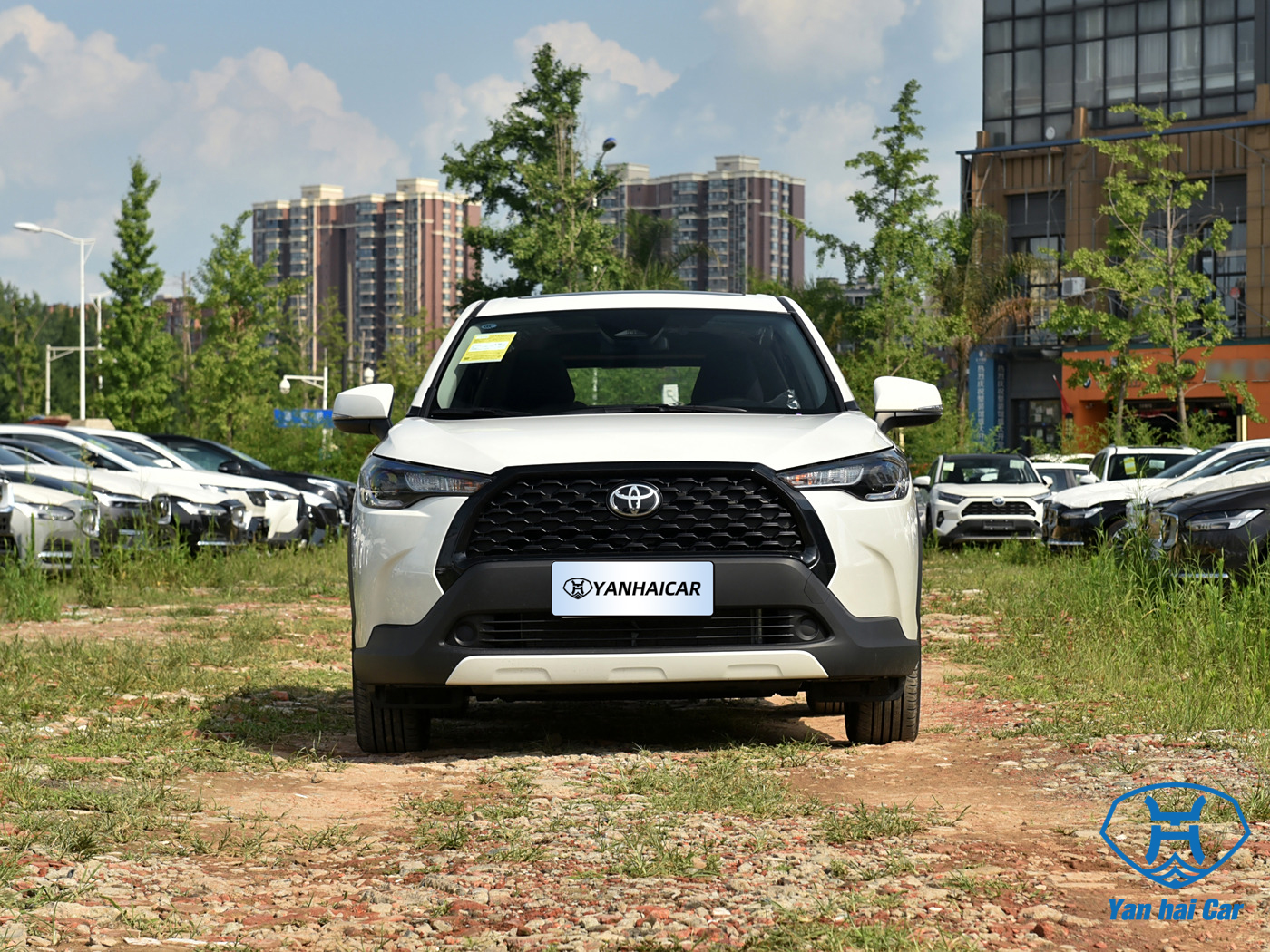

24 Toyota Corolla Cross 2.0 Intelligent Electric Hybrid Twin Engine Elite

Basic Information

Manufacturer：Faw Toyota

Class: Compact SUV

Energy Type: Hybrid

Environmental Standard: National VI

Availability: June 2024

Engine and Electric Motor

Engine:

Model: M20G

Displacement: 1987mL (2.0L)

Intake form: naturally aspirated

Cylinder arrangement: L-type

Number of cylinders: 4

Maximum horsepower: 152Ps

Maximum power: 112kW

Maximum torque: 188N-m

Maximum power speed: 6000rpm

Maximum torque speed: 4400-5200rpm

Fuel supply mode: Hybrid injection

Fuel grade: No. 92

Cylinder head/block material: aluminum alloy

Environmental Protection Standard: National VI

Electric motor:

Motor Type: Permanent Magnet/Synchronous

Total Motor Power: 83kW

Total motor horsepower: 113Ps

Total motor torque: 206N-m

Number of drive motors: Single motor

Motor Layout: Front

Chassis and Drive

Transmission: E-CVT Continuously Variable Transmission

Driving mode: Front-mounted front drive

Front Suspension Type: MacPherson Independent Suspension

Rear Suspension Type: Longitudinal arm torsion beam non-independent suspension

Steering Type: Electric Power Assist

Body Structure: Load-bearing

Dimension and Weight

Length×Width×Height(mm): 4460×1825×1620

Wheelbase(mm): 2640

Front wheelbase(mm):1565

Rear wheelbase(mm):1580

Minimum Turning Radius(m): 5.2

Overall quality(kg): 1440

Fuel tank volume(L): 36

Trunk volume (L): 427

Performance and Fuel Consumption

Top speed (km/h): 180

WLTC Combined Fuel Consumption(L/100km): 4.56

Safety and Driving Assistance

Active safety features:

ABS anti-lock

Brake force distribution (EBD/CBC, etc.)

Brake Assist (EBA/BA, etc.)

Traction control (ASR/TCS/TRC, etc.)

Stability Control (ESC/ESP/DSC, etc.)

Lane Departure Warning System

Forward Collision Warning

Active Braking/Active Safety System

Lane Keeping Assist System

Lane Keeping

Road Traffic Sign Recognition

Driver Assistance System: Toyota Safety Sense, Assisted Driving Level L2

Driving modes: Sport mode

Auto Park: Standard

Hill Assist: Standard

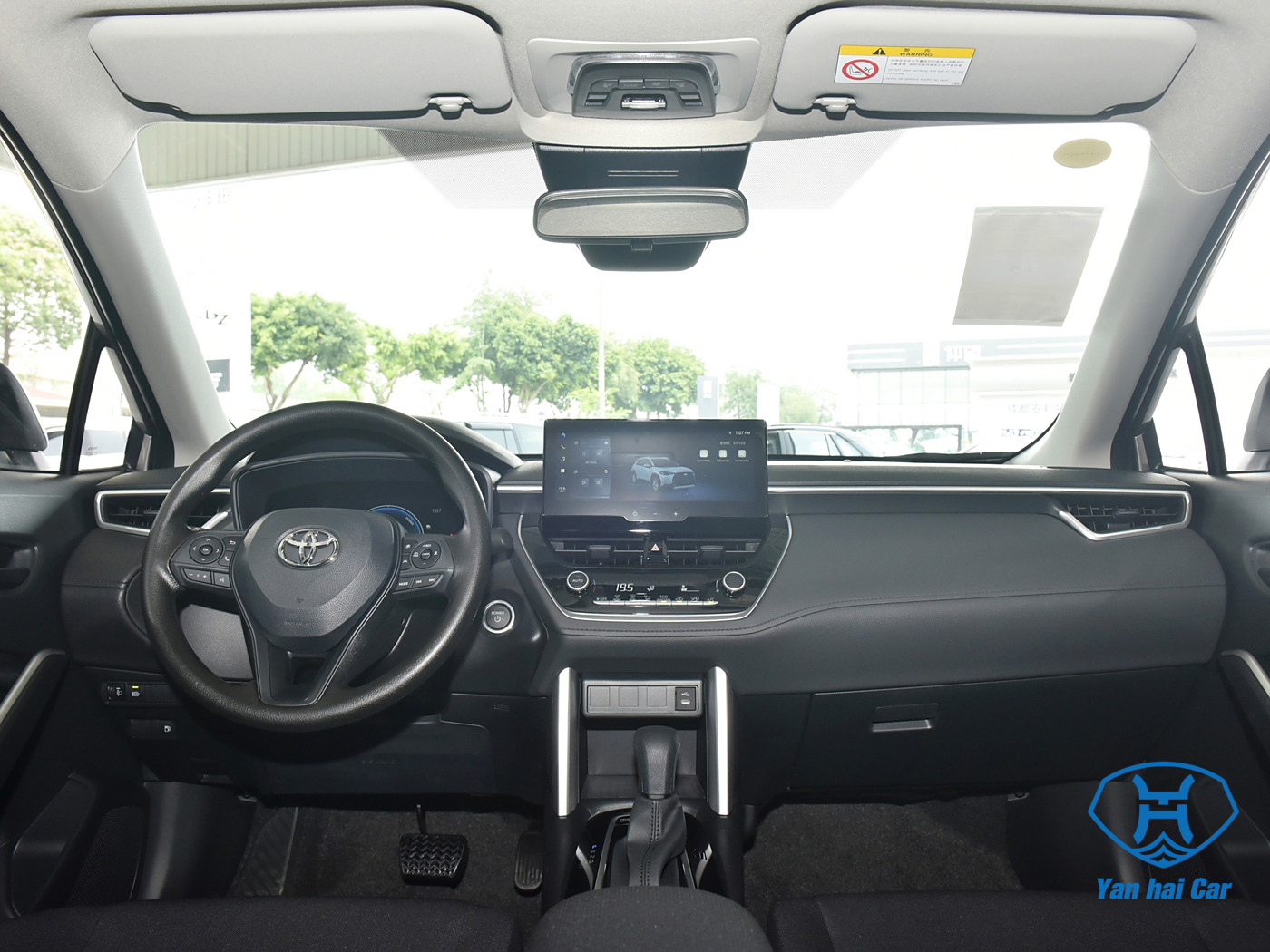

Exterior and Interior Features

Sunroof: Power sunroof

Windows: front/rear power windows, one-touch window up/down function (all vehicles), window anti-pinch function

Exterior mirrors: power adjustable

Center screen: 10.25-inch touch LCD screen, support CarPlay, CarLife, HUAWEI HiCar cell phone connectivity mapping

Air conditioning: automatic air conditioning, rear seat vents

Seats: fabric, main/auxiliary seats support fore/aft adjustment, backrest adjustment, height adjustment (2-way)

Other Configurations

Keyless Start System: Standard

Keyless entry function: front

Multimedia/charging interface: USB, Type-C interface (2 in front)
